Part No:01-SSC-1988
Stock:21 In Stock
EAN Code:0758479019886
Ships in 1-2 days
100% Customer
Secure Payment

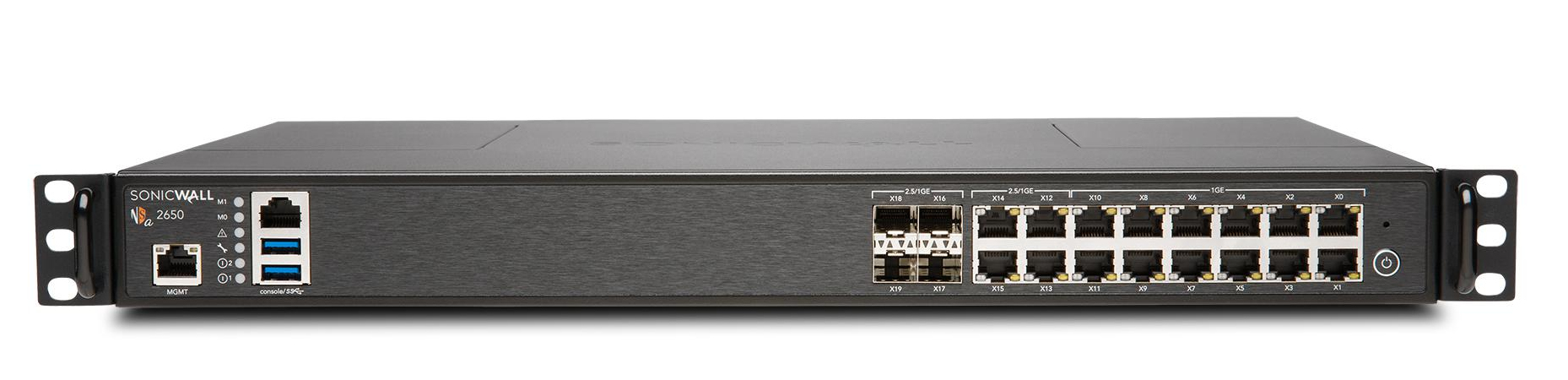

The SonicWall Network Security Appliance (NSA) series combines the patented SonicWall Reassembly Free Deep Packet Inspection (RFDPI) engine with a powerful and massively scalable multi-core architecture to deliver intrusion prevention,gateway anti-virus,gateway anti-spyware,and application intelligence and control for businesses of all sizes. By integrating automated and dynamic security capabilities into a single platform,the NSA series provides comprehensive next-generation firewall protection without compromising performance.
| General | |
|---|---|
| Device Type | Security appliance |
| Bundled Services | 1 year SonicWALL Advanced Gateway Security Suite |
| Height (Rack Units) | 1U |
| Width | 48.5 cm |
| Depth | 43 cm |
| Height | 4.5 cm |
| Weight | 6.15 kg |
| Networking | |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet,2.5 Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP,PPTP,UDP/IP,L2TP,ICMP/IP,IPSec,PPPoE,DHCP |
| Routing Protocol | OSPF,RIP-1,RIP-2,BGP,static IP routing,policy-based routing (PBR) |
| Remote Management Protocol | SNMP 2,SNMP 3,HTTP,HTTPS,CLI |
| Performance | Firewall throughput:3 Gbps Full Deep Packet Inspection (DPI) throughput:600 Mbps Application throughput:1.4 Gbps IPS throughput:1.4 Gbps Anti-malware throughput:600 Mbps Firewall throughput (IMIX):700 Mbps SSL throughput:300 Mbps VPN throughput:1.5 Gbps Connection rate:15000 connections per second |
| Capacity | SPI connections:1000000 DPI connections:500000 Maximum number of access points:48 VPN tunnels (site-to-site):1000 IPSec VPN connections:50 SSL VPN users:2 Virtual interfaces (VLANs):256 |
| Features | NAT support,VPN support,load balancing,Stateful Packet Inspection (SPI),DoS attack prevention,Intrusion Prevention System (IPS),URL filtering,deep inspection,DDos attack prevention,Stateful switchover (SSO),anti-spam protection,anti-malware protection,Quality of Service (QoS),RADIUS support,DHCP server,DNS proxy,DHCP relay,NetFlow,IPFIX,2 fans |
| Encryption Algorithm | DES,Triple DES,MD5,SHA-1,128-bit AES,192-bit AES,256-bit AES |
| Authentication Method | RADIUS,internal user database,XAUTH authentication |
| Compliant Standards | IEEE 802.3,IEEE 802.1p |
| IP Telephony | |
| VoIP Protocols | SIP,H.323 v3,H.323 v4,H.323 v1,H.323 v2,H.323 v5 |
| IP Telephony Features | VoIP gatekeeper support,VoIP outbound bandwidth management |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Interfaces | 12 x 1000Base-T - RJ-45 2 x USB - Type A 1 x 1000Base-T (management) - RJ-45 1 x management - RJ-45 4 x 2.5Gb Ethernet - SFP (mini-GBIC) 4 x 2.5Gb Ethernet - RJ-45 |
| Miscellaneous | |
| MTBF | 16.76 years |
| Compliant Standards | FCC Class A certified,UL,TUV GS,C-Tick,BSMI,cUL,CB,EMC,RoHS,WEEE,ANATEL,REACH,KCC Class A,LVD,VCCI Class A,MSIP Class A,CoC,CU |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 74.3 Watt |
| Power Provided | 120 Watt |
